ALL TYPES OF SHORING WORKS

Secant Piles

Secant bored wall piles consist of overlapping primary (often referred to female) piles and secondary (male) piles. The primary piles are usually, though not always, un-reinforced.

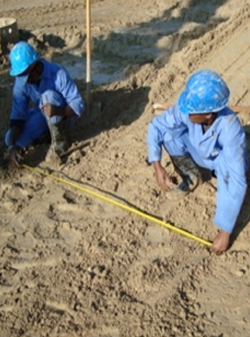

The setting out of pile position will be carried out

A guide wall is constructed to set out the position of the secant pile

Installation of temporary casing

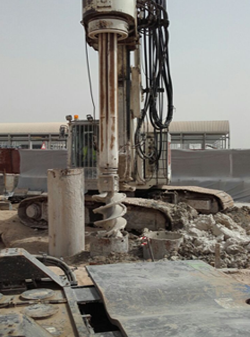

Drilling of Pile Borehole

Sheet Piles

Sheet piles is use to protect or retain the soil at the adjacent sides during excavation. The full wall is formed by connecting or interlocking the adjacent sheet pile section.

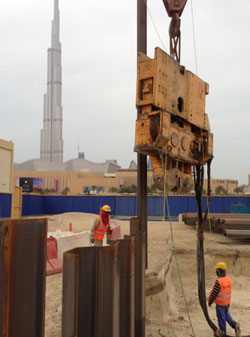

Placing & Driving of Piles

Cutting & Splicing & Inspection of Driven Pile

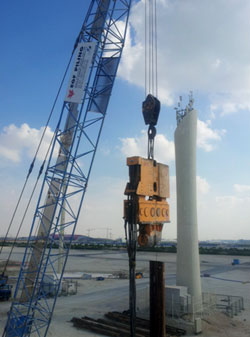

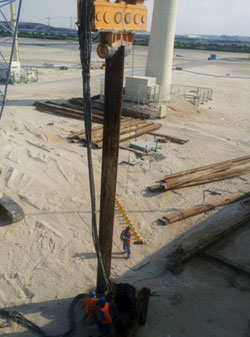

Extraction of Sheet Pile

Extraction of Sheet Pile

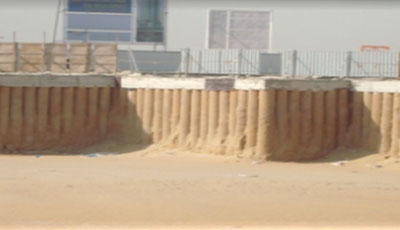

Contigous Piles

Contiguous bored wall piles consist of line of individual piles positioned at close centres and are formed by conventional continuous flight auger or rotary auger bored pile techniques.

Contigous Piles

Soldier Piles

Soldier steel beam and lagging walls are the most commonly used type of wall system in civil engineering work. This wall system uses discrete vertical wall elements spanned by lagging which is either timber or in more cases reinforced concrete panel.

Soldier Piles
